Thin Film Platinum Resistor Pt100-DW

Name: Thin Film Platinum Resistor Pt100-DW
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 500°C
Response Time:[Flow (V=0.4 m/s)]t0.5 = 0.05 s,t10 = 0.15 s[Airflow (V=2 m/s)]t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Your Trusted Thin Film Platinum Resistor Pt100-DW Manufacturer

As a leading manufacturer and supplier of high-precision temperature sensing solutions, Xi'an Tongzida Technology Co., Ltd. proudly presents our advanced Thin Film Platinum Resistor Pt100-DW. Our expertise in microsensor manufacturing and special packaging technology ensures superior performance, reliability, and customization options for your most demanding applications.

Introduction to Thin Film Platinum Resistor Pt100-DW

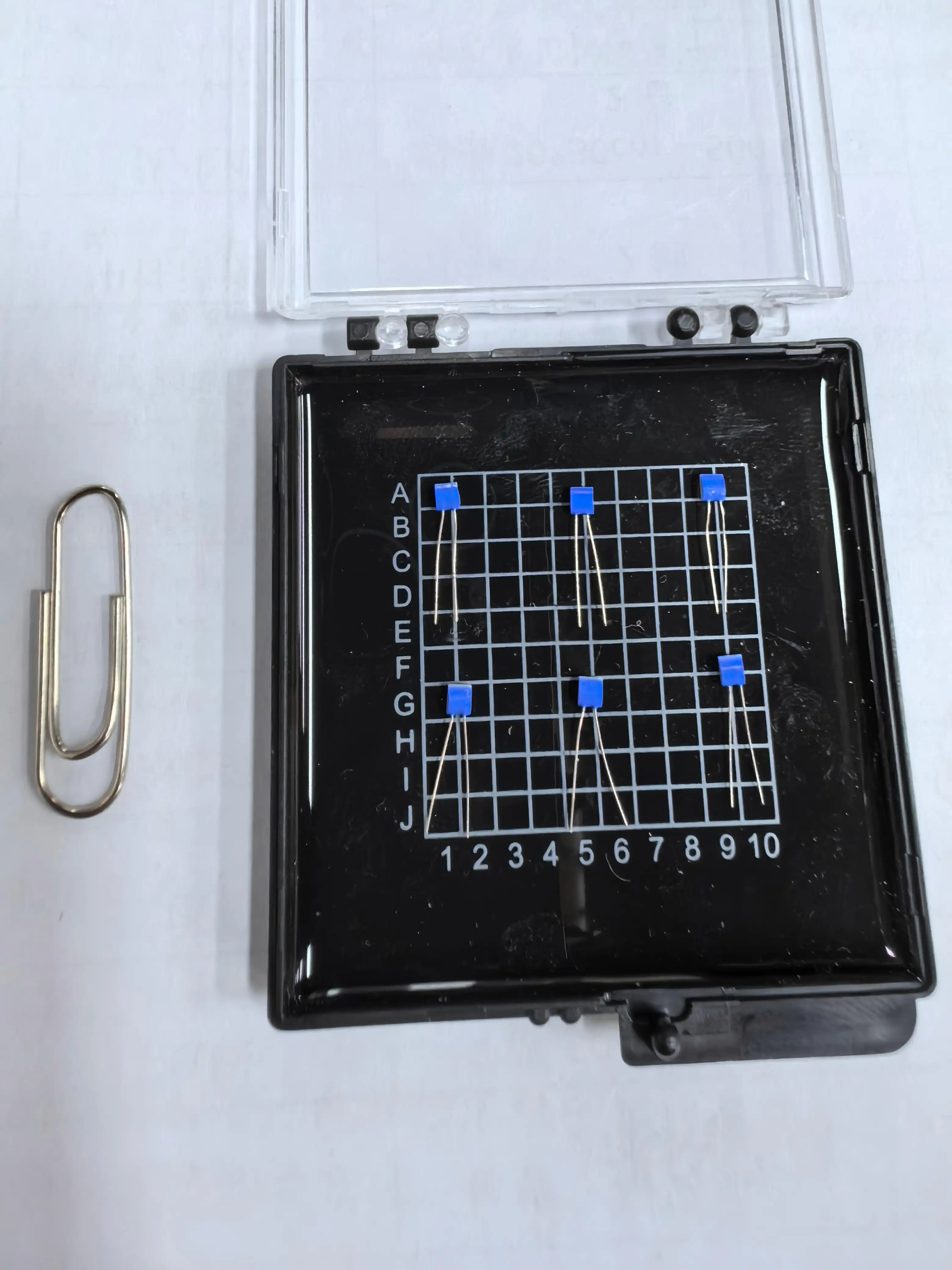

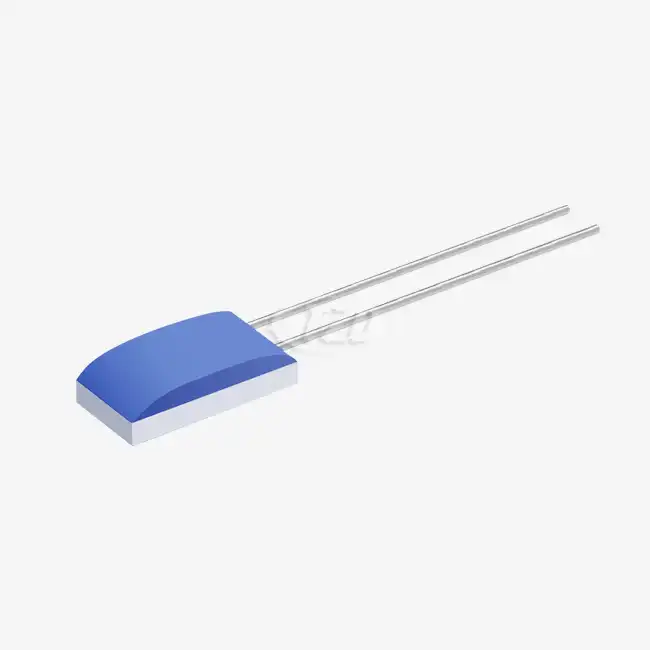

The Thin Film Platinum Resistor Pt100-DW is a cutting-edge temperature sensing element designed for industries requiring precise and stable temperature measurements. This compact sensor offers exceptional accuracy, rapid response times, and outstanding long-term stability, making it ideal for a wide range of industrial, medical, and automotive applications.

product-1-1

Why Choose Our Thin Film Platinum Resistor Pt100-DW?

Unparalleled Accuracy: With a temperature coefficient of 3850 ppm/°C and compliance with IEC 60751 standards, our sensors deliver reliable measurements across a broad temperature range.
Rapid Response: Achieve lightning-fast temperature readings with response times as low as 0.05 seconds in flowing conditions.
Durability: Engineered to withstand vibrations up to 40g and shocks up to 100g, ensuring longevity in harsh environments.
Customization: Multiple element sizes and lead material options allow for tailored solutions to meet your specific requirements.
Quality Assurance: Backed by ISO9001 certification and rigorous testing procedures, our sensors guarantee consistent performance and reliability.

product-1-1

Specifications

Parameter	Value
Element Type	Thin Film Platinum Resistance Thermistor
Element Dimensions	2.0mm x 2.3mm x 1.0mm, 1.6mm x 2.0mm x 1.0mm, 1.2mm x 2.0mm x 1.0mm
Lead Specifications	Length: 10 mm, Diameter: 0.2 mm
Lead Material	Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Temperature Coefficient (TCR)	3850 ppm/°C
Operating Current	0.3 ~ 1 mA
Long-Term Stability	≤±0.04% resistance drift after 1000 hours at 500°C

Reference Selection

Application	Recommended Model
Industrial Process Control	Pt100-DW-2.0
Medical Equipment	Pt100-DW-1.6
Automotive Sensors	Pt100-DW-1.2
HVAC Systems	Pt100-DW-2.3

Features of Our Thin Film Platinum Resistor Pt100-DW

Wide temperature range: -200°C to +850°C
High accuracy: ±0.01 Ω (1/30B level)
Excellent long-term stability
Fast response time
Superior vibration and shock resistance
Customizable lead materials and lengths
Vacuum packaging available

Applications

Our Thin Film Platinum Resistor Pt100-DW excels in various industries:

Industrial automation and process control
Medical and laboratory equipment
Automotive temperature sensing
Aerospace and defense
HVAC and energy management systems
Food and beverage processing
Chemical and petrochemical industries

Certificates

Our commitment to quality is reflected in our certifications, including ISO9001, RoHS, and CE. These certifications ensure that our product meets the highest industry standards and regulatory requirements.

product-1-1

Packing and Delivery

We offer vacuum plastic packaging to protect the sensors during shipment. Custom packaging solutions are available upon request to meet your specific handling and storage needs.

FAQ

Q1: What is the temperature range of the product?
A1: Our sensor covers a wide range from -200°C to +850°C, making it suitable for diverse applications.

Q2: Can I get custom lead lengths for my specific application?
A2: Absolutely! We offer customizable lead lengths to meet your exact requirements.

Q3: How does the product perform in high-vibration environments?
A3: Our sensor is designed to withstand vibrations up to 40g, ensuring reliable performance in challenging conditions.

Q4: What is the typical response time of your sensor?
A4: In flowing conditions, our sensor can achieve response times as low as 0.05 seconds for t0.5.

Q5: Do you provide technical support for integration and troubleshooting?
A5: Yes, our experienced engineering team offers comprehensive technical support to ensure successful implementation of our sensors in your applications.
